Triton Compact & Portable. Rugged & All-Weather. PTZ Camera Control.

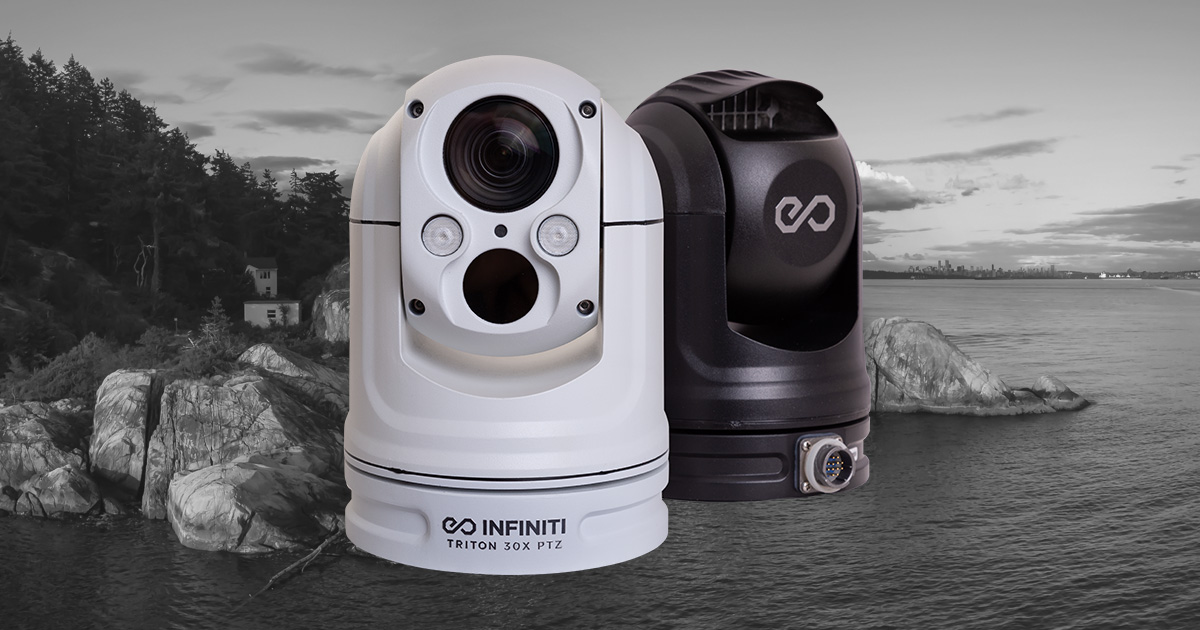

The Triton is a rugged, all-weather portable PTZ camera system featuring an impressive 30X HD day/night zoom camera with both wide-angle and long-range imaging capabilities.
Small enough for mobile deployment with a versatile magnetic base, this rugged PTZ camera excels in both practical and extreme applications. Ideal for mobile field surveillance, rapid deployment situations, and anywhere else a compact, high performance PTZ is needed, the Triton will not disappoint.
Incredible Zoom
Integrated Night Vision
Small & Rugged
Versatile Mounting
Visible/NIR Camera Options
Get closer and capture more detail on distant subjects with the impressive optical zoom of the visible light (color) camera options. The Triton offers full-HD image resolution while maintaining a detailed long-range clarity that only optical zoom can provide.
30X
4.8–144mm 30X Long-Range Visible/NIR 2MP Camera
The 2MP 1/2.8" sensor offers HD resolution with excellent spectral sensitivity for both visible and NIR wavelengths, making it a true day/night camera providing clear color images by day and black and white images at night.
Paired with the precision-engineered 4.8–144mm lens, this camera boasts a 30X continuous optical zoom range offering anything from a wide 60.3° to a narrow 2.22° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 940mm lens.
4M-24X
5–120mm 24X Long-Range Visible/NIR 4MP Camera
The 4MP 1/2.9" sensor offers increased resolution while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.
Paired with the precision-engineered 5–120mm lens, this camera boasts a 24X continuous optical zoom range offering anything from a wide 56.6° to a narrow 2.57° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 800mm lens.
4M-30X
4.7–141mm 30X Long-Range Visible/NIR 4MP Camera
The 4MP 1/2.9" sensor offers increased resolution while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.
Paired with the precision-engineered 4.7–141mm lens, this camera boasts a 30X continuous optical zoom range offering anything from a wide 67.9° to a narrow 2.14° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 965mm lens.
8M-8X
5–40mm 8X Long-Range Visible/NIR 8MP/4K Camera
The 8MP 1/2.8" sensor offers increased resolution while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.
Paired with the precision-engineered 5–40mm lens, this camera boasts a 8X continuous optical zoom range offering anything from a wide 58.3° to a narrow 8° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 250mm lens.
12M-3X
3.9–14.5mm 3X Wide Angle Visible/NIR 12MP Camera
Designed with flexible wide-angle spotter surveillance in mind, the 3X wide‑angle zoom lens offers FOVs adjustable from 74.6° to 24° FOV. The motorized zoom allows easy adjustment for precisely the wide-angle coverage required for situational awareness in each scene.
Infrared Illumination
Just as the human eye relies on the presence of an adequate light source to see, security cameras must be provided with proper illumination to capture high-quality images and video. The Triton’s 3 IR LED array provides up to 50m (160ft) of IR illumination when there isn’t enough natural light available. An electronic photocell automatically activates the IRs in low light, ensuring optimal 24/7 day night imaging, even in complete darkness.
Environmental Protection
The Triton's enclosure is designed with an ingress protection rating of IP66, protecting the internal components from dust, dirt and liquids. This protection allows the Triton to withstand a wide variety of environmental conditions including rain and snow.
Magnetic Mount
A built-in magnetic mount opens up a world of possibilities for placing your Triton in the perfect position. Giving users a lot of flexibility, the magnetic mount requires zero tools or screws to set up, which is a huge time savings. The powerful magnets make the Triton quick and easy to install and adjust for optimum positioning. This portable camera support is able to work effectively both indoors and out.
Vibration Mount
The anti-vibration mount works to achieve a clearer picture even in turbulent environments. This is achieved by minimizing the level of vibration transmitted from the Triton system to its external surroundings through absorbing much of the vibration before it affects the camera and the resulting picture.
Low SWaP Design
Small, lightweight electronic systems that don't use much power are massively advantageous in a variety of situations.
Small Size
The Triton’s compact size and design allows for easy mobility and mounting versatility.
Light Weight
Weighing in at under 5 pounds, the 2.6kg Triton is an easy addition to many surfaces or tactical situations.
Low Power
The Triton uses just 20W of power, making it ideal for solar or other low-power installations.
Rugged Military Style Connector
The Triton’s communication cable uses a rugged military-grade connector that locks the cable in place while protecting it from rain and dust. It has the added advantage of being incredibly quick to connect or disconnect, making the Triton an ideal camera for a rapid deployment solution. Custom cable lengths and cable configurations are also available build-to-order.
Multiple Connections
The Triton can be configured as an IP network video camera system, allowing the video to be distributed over wired, wireless and cellular networks. It is equipped with PoE and ONVIF, or alternatively can be ordered with analog output if required. RS485 is included for precise control of the camera using an optional PTZ joystick.
More Options
Our standard breakout cable is included with the Triton, however we can also customize the configuration in a number of ways, including adding a weatherproof junction box for remote installations, extending the length of the cable, or even creating a rapid deployment kit that can power, display and control the camera with a quick and simple connection.
