Sigma Camera System with Thermal, Visible and ZLID

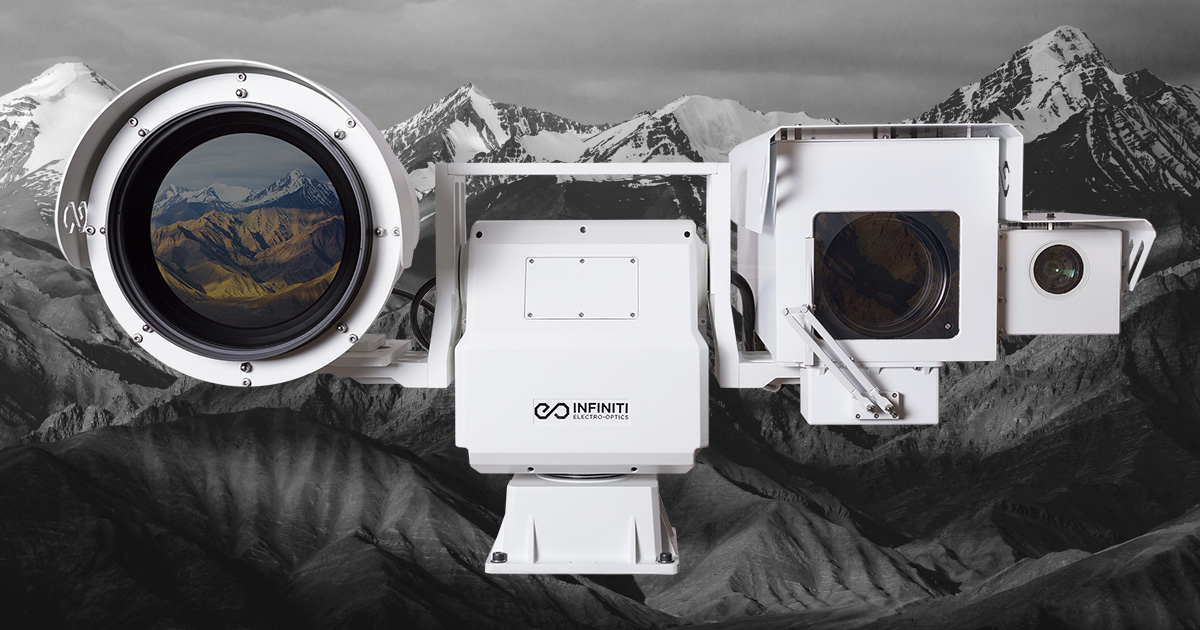

Sigma All-Weather Long-Range PTZ Camera System

The Sigma is a customizable multi-sensor PTZ system that boasts an extreme long-range HD visible camera in options up to 2075mm. Paired with up to 5000m of ZLID illumination or a day/night thermal imaging camera up to 1400mm, this camera system provides ultimate nighttime surveillance performance.Combining these multiple sensors allows for accurate detection, recognition, and identification of potential threats. The housing is a rugged IP66 construction using a strengthened aluminum alloy with anti-corrosive coating, allowing it to withstand the harshest climates for dependable perimeter security, homeland defense, and coastal protection.

Zoom Icon

Longest Range Zoom Lenses

Night Vision

Advanced Night Vision Options

Thermal Imaging Options

The Sigma boasts industry-leading thermal cameras with uncooled LWIR and cooled MWIR options from resolution of 384×288 up to 1280×1024 HD to ensure mission success.

Thermal cameras, unlike traditional visible cameras, use heat rather than light to see objects. Humans, animals, and vehicles are all quite hot in contrast to most surroundings, making intruders hiding in shadows or bushes easy to spot. Thermal images are also unaffected by bright lights and can see through atmospheric obstructions such as smoke, dust, and light fog. This makes thermal imaging an ideal technology for many applications including surveillance and security, search and rescue, fire fighting, marine and land navigation, wide area situational assessment, and much more.

Learn more about thermal imaging

1200CTZ-HD

92–1200mm, HD Cooled Thermal

A high-sensitivity MWIR cooled thermal 10μm InSb sensor, with a resolution of 1280×1024 and a cooler lifetime of 10,000 hours MTBF. Paired with an f/4.0 germanium zoom lens, the 13X optical zoom results in a FOV from 7.96° to 0.61°, allowing for long-range vehicle detection* up to 50km away at 2.4ppm.

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
120
PPM @ 1km
55+
km
DRI Detection*
10
μm
Pixel Pitch
0.61°
–7.96°
Horizontal FOV Range

1400CTZ

85–1400mm, SD Cooled Thermal

A high-sensitivity MWIR cooled thermal 15μm InSb sensor, with a resolution of 640×480 and a cooler lifetime of 10,000 hours MTBF. Paired with an f/5.5 germanium zoom lens, the 16X optical zoom results in a FOV from 6.4° to 0.4°, allowing for long-range vehicle detection* up to 50km away at 1.9ppm.

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info video
93.3
PPM @ 1km
55+
km
DRI Detection*
15
μm
Pixel Pitch
0.39°
–6.4°
Horizontal FOV Range

1100CTZ

46–1100mm, SD Cooled Thermal

A high-sensitivity MWIR cooled thermal 15μm InSb sensor, with a resolution of 640×480 and a cooler lifetime of 10,000 hours MTBF. Paired with an f/5.5 germanium zoom lens, the 23X optical zoom results in a FOV from 11.9° to 0.5°, allowing for long-range vehicle detection* up to 50km away at 1.4ppm.

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
73.3
PPM @ 1km
55+
km
DRI Detection*
15
μm
Pixel Pitch
0.5°
–11.9°
Horizontal FOV Range

1015CTZ-HD

55–1015mm, HD Cooled Thermal

A high-sensitivity MWIR cooled thermal 10μm InSb sensor, with a resolution of 1280×1024 and a cooler lifetime of 10,000 hours MTBF. Paired with an f/4.0 germanium zoom lens, the 18X optical zoom results in a FOV from 13.3° to 0.72°, allowing for long-range vehicle detection* up to 50km away at 2.03ppm.

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
102
PPM @ 1km
55+
km
DRI Detection*
10
μm
Pixel Pitch
0.72°
–13.3°
Horizontal FOV Range

875CTZ

38–875mm, SD Cooled Thermal

A high-sensitivity MWIR cooled thermal 15μm InSb sensor, with a resolution of 640×480 and a cooler lifetime of 10,000 hours MTBF. Paired with an f/5.5 germanium zoom lens, the 23X optical zoom results in a FOV from 14° to 0.65°, allowing for long-range vehicle detection* up to 43km away at 1.4ppm.

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
58.3
PPM @ 1km
55+
km
DRI Detection*
15
μm
Pixel Pitch
0.63°
–14.4°
Horizontal FOV Range

430CTZ

30–430mm, SD Cooled Thermal

A high-sensitivity MWIR cooled thermal 10μm X-Hot sensor, with a resolution of 640×480 and a cooler lifetime of up to 35,000 hours MTBF. Paired with an f/3.6 germanium zoom lens, the 14X optical zoom results in a FOV from 12.2° to 0.85°, allowing for long-range vehicle detection* up to 47km away.

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
43
PPM @ 1km
47
km
DRI Detection*
10
μm
Pixel Pitch
0.85°
–12.2°
Horizontal FOV Range

310TIZ

31–310mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 31–310mm germanium zoom lens, boasting a wide ƒ/1.3 aperture, for long-range detection of thermal targets up to 28km away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
25.8
PPM @ 1km
28
km
DRI Detection*
12
μm
Pixel Pitch
1.42°
–14.1°
Horizontal FOV Range

410CTZ-HD

18–410mm, HD Cooled Thermal

A high-sensitivity MWIR cooled thermal 10μm InSb sensor, with a resolution of 1280×1024 and a cooler lifetime of 10,000 hours MTBF. Paired with an f/4.0 germanium zoom lens, the 22X optical zoom results in a FOV from 39.1° to 1.79°, allowing for long-range vehicle detection* up to 45km away.

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
41
PPM @ 1km
45
km
DRI Detection*
10
μm
Pixel Pitch
1.79°
–39.1°
Horizontal FOV Range

230TIZ

26–230mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 26–230mm germanium zoom lens, boasting a wide ƒ/1.3 aperture, for long-range detection of thermal targets up to 21km away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
19.2
PPM @ 1km
21
km
DRI Detection*
12
μm
Pixel Pitch
1.91°
–16.8°
Horizontal FOV Range

Visible/NIR Camera Options

Infiniti’s VIS/NIR zoom cameras utilize the visible and near-infrared bands of light to provide high-quality images optimized for long-range surveillance. They are designed to provide industry-leading performance and quality, with image resolutions ranging from HD 2MP (1080p) to UltraHD 4K/8MP.

2075-LSM

15.5–2075mm Ultra Long-Range Visible/NIR HD Camera

Designed and optimized with extreme long-range surveillance in mind, the 2075mm visible zoom camera is our longest-range camera module. The sensor boasts excellent spectral sensitivity for both visible and NIR wavelengths and features a motorized NIR filter (visible cut filter), making it a true day/night camera providing clear color images by day and black and white images at night. Infiniti’s HD zoom camera is a perfect synergy between precision craftsmanship, state-of-the-art sensor hardware and the latest image processing for unparalleled range and performance.

More Info video
553
ppm
Pixels Per Meter @ 1km
135X
Zoom Factor
HD
Sensor Resolution

8M-95X

10.6–1015mm 95X Long-Range Visible/NIR 8MP Camera

The 8MP 1/1.8" sensor offers greatly increased 4K resolution. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 10.6–1015mm lens, this camera boasts a 95X continuous optical zoom range offering anything from a wide 42.0° to a very narrow 0.43° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 4750mm lens.

More Info
508
ppm
Pixels Per Meter @ 1km
95X
Zoom Factor
8
MP
Output Resolution

8M-53X

15–800mm 53X Long-Range Visible/NIR 8MP Camera

The 8MP 1/1.8" sensor offers increased resolution while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 15–800mm lens, this camera boasts a 53X continuous optical zoom range offering anything from a wide 28.7° to a very narrow 0.55° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 3700mm lens.

More Info
400
ppm
Pixels Per Meter @ 1km
53X
Zoom Factor
8
MP
Output Resolution

79X

15.5–1235mm 79X Long-Range Visible/NIR 2MP Camera

The 4.1MP 1/2" sensor offers increased detail for the 2MP 1080p output. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 15.5–1235mm lens, this camera boasts a 79X continuous optical zoom range offering anything from a wide 27.0° to a very narrow 0.33° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 6000mm lens.

More Info
329
ppm
Pixels Per Meter @ 1km
79X
Zoom Factor
2
MP
Output Resolution

4M-95X

10–955mm 95X Long-Range Visible/NIR 4MP Camera

The 4MP 1/1.7" sensor offers increased resolution while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 10–955mm lens, this camera boasts a 95X continuous optical zoom range offering anything from a wide 42.9° to a very narrow 0.47° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 4450mm lens.

More Info
327
ppm
Pixels Per Meter @ 1km
95X
Zoom Factor
4
MP
Output Resolution

4M-53X

15–800mm 53X Long-Range Visible/NIR 4MP Camera

The 4MP 1/1.7" sensor offers increased resolution while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 15–800mm lens, this camera boasts a 53X continuous optical zoom range offering anything from a wide 29.4° to a very narrow 0.56° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 3700mm lens.

More Info
274
ppm
Pixels Per Meter @ 1km
53X
Zoom Factor
4
MP
Output Resolution

59X

14.8–875mm 59X Long-Range Visible/NIR 2MP Camera

The 4MP 1/1.7" sensor offers increased sharpness while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 14.8–875mm lens, this camera boasts a 59X continuous optical zoom range offering anything from a wide 29.8° to a very narrow 0.51° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 4000mm lens.

More Info
214
ppm
Pixels Per Meter @ 1km
53X
Zoom Factor
2
MP
Output Resolution

8M-49X

5.6–272mm 49X Long-Range Visible/NIR 8MP/4K Camera

The 8MP 1/1.8" sensor offers incredible 4K resolution while maintaining great low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 5.6–272mm lens, this camera boasts a 49X continuous optical zoom range offering anything from a wide 75° to a narrow 1.62° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 1275mm lens.

More Info video
136
ppm
Pixels Per Meter @ 1km
49X
Zoom Factor
8
MP
Sensor Resolution

IR Illumination Options

Infrared illumination allows for covert and detailed video surveillance when there isn’t enough natural light, but most IR illumination solutions are very limited in range. Infiniti’s ZLID™ technology uses infrared lasers to achieve far further illumination than what is possible with typical IR LEDs, synchronizing the IR intensity and area illumination with the zoom lens for outstanding active IR performance at distances up to 5km.

5000M-ZLID

5km ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 5km of long-range illumination in complete darkness.

More Info
5000
m
Illumination Distance
808
nm
Wavelength
376
m
NOHD

4000M-ZLID

4km ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 4km of long-range illumination in complete darkness.

More Info
4000
m
Illumination Distance
808
nm
Wavelength
266
m
NOHD

3000M-ZLID

3km ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 3km of long-range illumination in complete darkness.

More Info
3000
m
Illumination Distance
808
nm
Wavelength
238
m
NOHD

2000M-ZLID

2km ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 2km of long-range illumination in complete darkness.

More Info
2000
m
Illumination Distance
808
nm
Wavelength
69
m
NOHD

1500M-ZLID

1.5km ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 1.5km of long-range illumination in complete darkness.

More Info
1500
m
Illumination Distance
808
nm
Wavelength
57
m
NOHD

1000M-ZLID

1km ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 1km of long-range illumination in complete darkness.

More Info
1000
m
Illumination Distance
808
nm
Wavelength
50
m
NOHD

Environmental Protection

The enclosure is designed with an ingress protection rating of IP66, protecting the internal components from dust, dirt and liquids. This protection allows the Sigma to withstand a wide variety of environmental conditions including rain and snow.

Military Connector & Custom Cable Options

The Sigma’s communication cable uses a rugged military-grade connector that locks the cable in place while protecting it from rain and dust. It has the added advantage of being incredibly quick to connect or disconnect, and custom cable lengths and cable configurations are also available build-to-order.

Closeup of power and control cable for Vega multi-sensor PTZ camera system

We Custom Build

Every situation is unique and has different needs. We balance your budget with the performance you require and suggest the ideal components that ensure that you’re getting the best value solution for your application.
